Yuav Ua Li Cas Xaiv, Txhim Kho, thiab Tswj Rotary Orbital Hydraulic Motors rau Kev Pabcuam Tshaj Plaws?

Cov lus qhia no txiav los ntawm txoj kev xav kom xa cov kev nkag siab zoo - los ntawm kev ntsuas lub cev muaj zog rau koj daim ntawv thov, mus rau cov txheej txheem kev teeb tsa kom raug, mus rau kev saib xyuas txhua hnub uas ua rau lub neej ua haujlwm siab tshaj plaws.

1. Txoj Cai Ua Haujlwm Tseem Ceeb - Dab tsi ua rau nws xa cov torque siab?

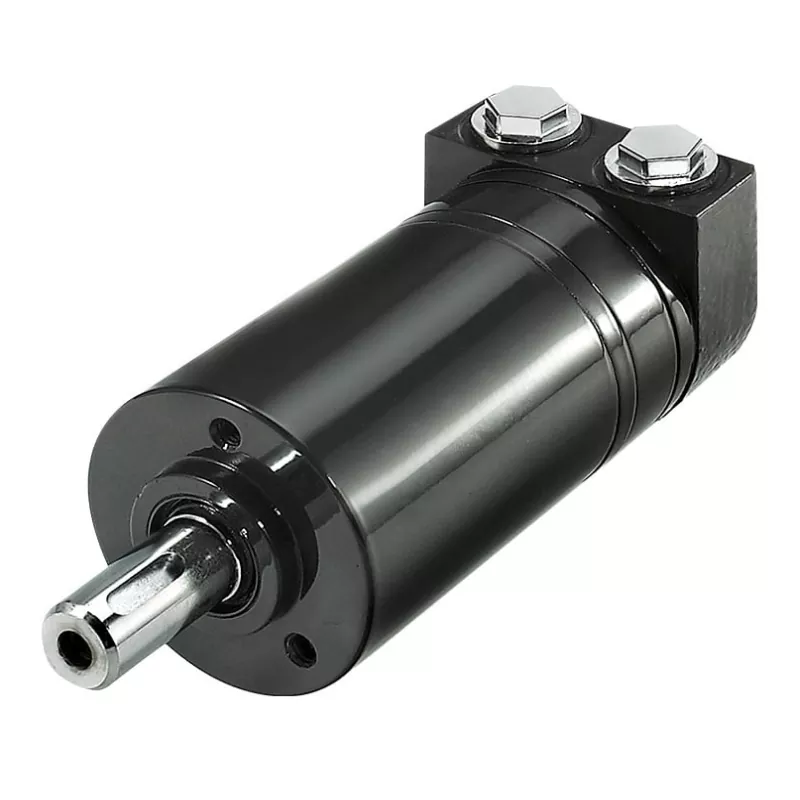

Lub plawv ntawm iborbital lub cev muaj zogyog ib lub iav meshing teeb tsa - lub rotor (sab nrauv iav) thiab stator ( puab iav) - nrog rau txoj cai tsim qauv tseem ceeb uas lub rotor muaj ib tug hniav tsawg dua stator. Thaum cov kua hydraulic pressurized nkag mus rau hauv lub cev muaj zog, nws yuam lub rotor ua ib qho orbital (planetary) motion nyob rau hauv lub stator. Cov lus tsa suab no yog kis los ntawm ib qho kev sib txuas sab hauv mus rau lub qhov tso zis, hloov lub orbital txav mus rau hauv cov zis tawm.

Qhov kev tsim no muab cov txiaj ntsig txhais tau zoo: Low-Speed ​​High-Torque (LSHT). Tsis zoo li vane lossis piston motors, orbital motors tuaj yeem tsim muaj zog, ruaj khov torque ncaj qha ntawm qis RPM yam tsis tas yuav muaj lub iav reducer. Qhov no yog qhov tseem ceeb rau cov ntawv thov uas xav tau kev tswj ceev ceev thiab siab pib torque nyob rau hauv hnyav loads.

Muaj ob lub ntsiab stator configuration:

• Gerotor (ib-thooj stator): Lub stator yog ib lub nplhaib sab hauv. Economical thiab txhim khu kev qha rau nruab nrab-lub luag hauj lwm cycles.

• Geroler (roller-equipped stator): Rollers lossis koob tau muab tso rau hauv cov hniav stator, hloov zawv zawg kev sib txhuam rau hauv kev sib txhuam. Qhov no ua rau muaj kev ua tau zoo dua, zoo dua kev poob siab-load tsis kam, thiab hnav lub neej ntev dua - zoo tagnrho rau kev ua haujlwm hnyav, ntau zaus.

2. Tswv yim Sizing - Xaiv txoj cai "lub siab" rau koj lub tshuab

Lub cev muaj zog tsis raug yog qhov # 1 ua rau ua tsis tiav ntxov. Undersizing ua rau overload puas tsuaj; oversizing khib nyiab nqi thiab txo tag nrho cov system efficiency. Ua kom pom tseeb ntawm plaub qhov tseem ceeb no:

• Torque, Speed ​​& Displacement (Lub Daim duab peb sab): Kev khiav tawm (cc/rev) ncaj qha txiav txim siab qhov tso zis torque - qhov hloov pauv loj dua txhais tau tias muaj dej ntau dua ib lub kiv puag ncig, yog li lub zog siab dua, tab sis qis tshaj qhov ceev. Nco ntsoov txhais qhov pib torque (uas feem ntau yog siab dua li khiav torque) thiab qhov yuav tsum tau ua haujlwm ceev ua ntej xaiv qhov hloov chaw. Hla-xyuas nrog cov chaw tsim khoom ua haujlwm nkhaus - tsis txhob xaiv lub cev muaj zog ua haujlwm ntawm nws qhov txwv tsis pub tshaj; tsom rau qhov chaw ua haujlwm siab tshaj plaws ntawm koj lub cev lub siab / ntws profile.

• System Pressure & Flow Rate: Paub meej tias koj lub zog lub zog ua haujlwm tsis tu ncua thiab qhov muaj peev xwm txaus txaus. Lub siab txwv lub ncov torque, thaum ntws txiav txim siab qhov siab tshaj plaws ceev. Sib piv cov no tiv thaiv lub cev muaj zog rated specifications. Xyuas kom lub cev muaj zog qhov siab tshaj plaws ntsuas muaj qhov tsim nyog kev nyab xeeb ntawm koj lub cev qhov siab tshaj plaws (siv lub siab nyem valve teem kom tsim nyog).

• Mounting & Ncej Loading: Tshaj li cov qauv ntawm cov ntsia liaj qhov rooj thiab flange qhov ntau thiab tsawg, lub peev xwm radial load ntawm cov zis ncej feem ntau tsis saib xyuas. Yog hais tias koj tab tom mounting ib sprocket, pulley, los yog siv tsav ncaj qha rau ntawm ncej, tseem ceeb sab loads yog qhia. Nyob rau hauv xws li mob, koj yuav tsum xaiv lub cev muaj zog nrog hnyav-lub luag hauj lwm bearings thiab sab laj nrog lub chaw tsim tshuaj paus lub radial load rating daim ntawv. Kev tsis quav ntsej qhov no ua rau muaj kev cuam tshuam sai sai thiab sealing.

• Environmental & Special Requirements: Rau huab cua huab cua huab cua, plua plav tej yam kev mob, los yog high-humidity ib puag ncig, qhia cov kev hloov kho cov ntsaws ruaj ruaj (xws li, Viton los yog HNBR) thiab cov ntaub ntawv corrosion-resistant. Rau cov ntawv thov uas xav tau kev sib tsoo lossis kev nrawm nrawm, xav txog kev sib xyaw ua ke xws li nres li qub, tachometers, lossis cov khoom sib npaug.

3. Installation & Commissioning – Cov ntsiab lus uas ua los yog tawg ua tau zoo

Lub cev muaj zog xaiv zoo tuaj yeem ua tsis tau sai yog tias ntsia tsis raug. Ua raws li cov kauj ruam uas tsis sib tham tau:

1. Precise Shaft Alignment: Tsis muaj qhov coaxial alignment ntawm lub cev muaj zog thiab lub zog tsav yog qhov yuav tsum tau ua. Txhua lub kaum sab xis lossis qhov tsis sib xws qhia txog radial lossis axial rog uas ua rau lub neej luv luv. Siv lub dial taw qhia los yog laser alignment cuab tam thiab ua raws li nruj me ntsis raws li cov chaw tsim tshuaj paus kev tolerances (feem ntau ≤ 0.05 hli radial runout).

2. Kho qhov chaw nres nkoj: Muab ob npaug rau-kos qhov chaw nres nkoj - Lub Siab (P), Rov qab (T), thiab Drain (L). Qhov chaw nres nkoj ntws yog qhov tseem ceeb: nws yuav tsum tau muab cais rov qab mus rau lub tank nrog tsawg kawg nkaus rov qab siab (feem ntau <5-10 bar, sab laj specs). Tsis txhob ntsaws qhov chaw nres nkoj dej - ua li ntawd yuav tshuab lub foob foob tam sim ntawd.

3. System Flushing Ua ntej pib-up: Ua ntej txuas lub cev muaj zog, yaug tag nrho cov hydraulic system (hoses, li qub, txias) nrog cov dej huv kom tshem tawm cov vuam slag, av, lossis cov khib nyiab tawm ntawm kev teeb tsa. Cov kab mob sib kis tau qhia thaum teeb tsa yog qhov ua rau hnav thaum ntxov.

4. Kev Ua Haujlwm Pib Ua Haujlwm: Rau cov motors tshiab lossis rov tsim dua tshiab, khiav lub tsev ntawm 30-50% ntawm qhov ntsuas load rau kwv yees li 30-60 feeb ua ntej ua haujlwm puv. Qhov no tso cai rau lub puab tsaig thiab bearings kom sib raug zoo thiab stabilizes internal clearances, ho expanding mus ntev durability.

4. Kev tu txhua hnub & Kev kuaj mob ceev ceev

Nco ntsoov txoj cai golden: 90% ntawm hydraulic lub cev muaj zog tsis ua haujlwm rov qab mus rau cov dej paug lossis dej tsis zoo. Kev saib xyuas tsis yog xaiv tau - nws yog lub neej ntawm koj cov khoom siv.

Kev Tswj Dej - Koj Qhov Tseem Ceeb # 1:

• Kev huv huv: Cov khoom siv ua cov khoom sib xyaw ua kom zoo nkauj, hnav cov precision-machined rotor-stator khub. Qhov no tsub kom lub sab hauv to, tee volumetric efficiency, thiab txo torque. Lub hom phiaj ntawm kev huv huv ntawm ISO 4406 18/16/13 lossis zoo dua, thiab tshuaj xyuas / hloov cov lim rov qab tsis tu ncua. Siv qhov ntsuas qhov ntsuas qhov sib txawv ntawm lub lim tsev.

• Viscosity & Kub: Qhov zoo tshaj plaws viscosity ntau yog 20-43 cSt ntawm 50 ° C. Khaws cov roj kub qis dua 60 ° C rau kev ua haujlwm tas mus li; Tsis txhob siab tshaj 85 ° C txawm nyob rau lub ncov. Kub kub nyias cov roj, txo lubricity thiab accelerating foob degradation. Tsis tshua muaj kub nce viscous luag, ua rau cavitation thiab sluggish pib. Nruab lub ntsuas kub thiab txias yog tias tsim nyog.

• Tsis txhob muab cov kua dej sib xyaw: Tsis txhob siv cov roj cav los ua ib qho kev hloov rau cov kua dej hydraulic. Lawv additive tej pob khoom yog incompatible. Kev sib xyaw ua ke tuaj yeem ua rau lub foob o, foaming, varnishing, thiab kev puas tsuaj loj. Ib txwm siv OEM-pom zoo hydraulic kua qib.

Quick Fault Diagnosis Table

Teem caij kuaj mob

Muab cov no tso rau hauv koj lub phiaj xwm kev tiv thaiv kev tiv thaiv:

• Txhua lub lim tiam: Txheeb xyuas qhov kub ntawm sab nraud (siv lub ntsuas kub infrared) thiab mloog qhov txawv txav los yog qw nrov.

• Txhua hli: Tshawb xyuas tag nrho cov hose fittings thiab cov ntsaws ruaj ruaj rau kev quaj.

• Peb lub hlis twg: Siv cov qauv roj thiab xa mus rau kev tshuaj ntsuam spectrometric - nce qib ntawm cov hlau, tooj liab, lossis silicon hais tias yog cov cim ceeb toom ntxov ntawm kev hnav sab hauv ntev ua ntej kev ua haujlwm poob qis.

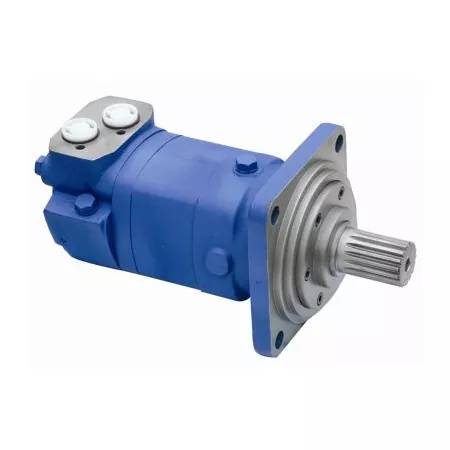

Ib tug rotaryorbital hydraulic lub cev muaj zogyog ib tug muaj zog thiab txhim khu kev qha workhorse thaum kho kom raug. Kev vam meej yog nyob rau hauv peb tus ncej: sizing nws kom raug rau koj lub ntiaj teb load profile tiag tiag, txhim kho nws nrog kev phais kom raug, thiab kev tswj xyuas cov kua dej raws li kev qhuab qhia tsis sib tham. Thaum tsis ntseeg, nco ntsoov xa mus rau cov chaw tsim khoom cov kev ua haujlwm tshwj xeeb nkhaus thiab cov kev pabcuam cuam tshuam - thiab tsis txhob yig los koom nrog lawv cov neeg ua haujlwm daim ntawv thov rau kev ua haujlwm nyuaj lossis kev sib koom ua ke.

Yog tias koj xav tau kev piav qhia ntxiv ntawm ib qho tshwj xeeb - xws li cov lus qhia ntxaws txog kev thauj khoom radial, kev xaiv valve sib xyaw, lossis cov kev xaiv kub kub sealing - thov qhia rau kuv paub thiab kuv tuaj yeem nthuav dav.
